How to Read and Understand Your Truck’s Diagnostic Codes

Check engine lights and warning beeps are your truck’s way of telling you something’s not quite right. But what do these mysterious codes mean? That’s where diagnostic trouble codes (DTCs) come into play.

If you’ve ever been face-to-face with a blinking dashboard and a sinking feeling in your gut, don’t worry, you’re not alone. That’s why we’ve put together this handy guide on how to read these codes, figure out what they mean for your truck, and know what to do next.

What Are Diagnostic Trouble Codes?

Let’s start with an easy one.

Trucks these days are equipped with an Electronic Control Module (ECM), which acts as the brain of the vehicle. It monitors a range of systems, including engine, transmission, brakes, aftertreatment, and electronic systems. When it detects something is off, it sends out a DTC.

Think of these as shorthand messages. Instead of just saying outright what the issue is, it provides a numerical alphanumeric code. Then, using a scanner or diagnostic tool, you can translate these codes and figure out what’s going on under the hood.

What Does a DTC Look Like?

Understanding a DTC can be daunting at first, but once you get the hang of it, you’ll realize it’s not actually that complicated. Here’s how the standard format typically looks:

First character: The system involved (P for Powertrain, B for Body, C for Chassis, U for Network)

Second digit: Tells you if it’s a generic code (0) or manufacturer-specific (1)

Third digit: Points to the subsystem (e.g., fuel, ignition, emissions)

Last two digits: Define the specific fault

For example, P0201 typically refers to a malfunction in the Cylinder 1 Injector Circuit.

How to Retrieve Diagnostic Codes

You don’t need to be a tech wizard to pull codes. Here’s how you can do it in three simple steps:

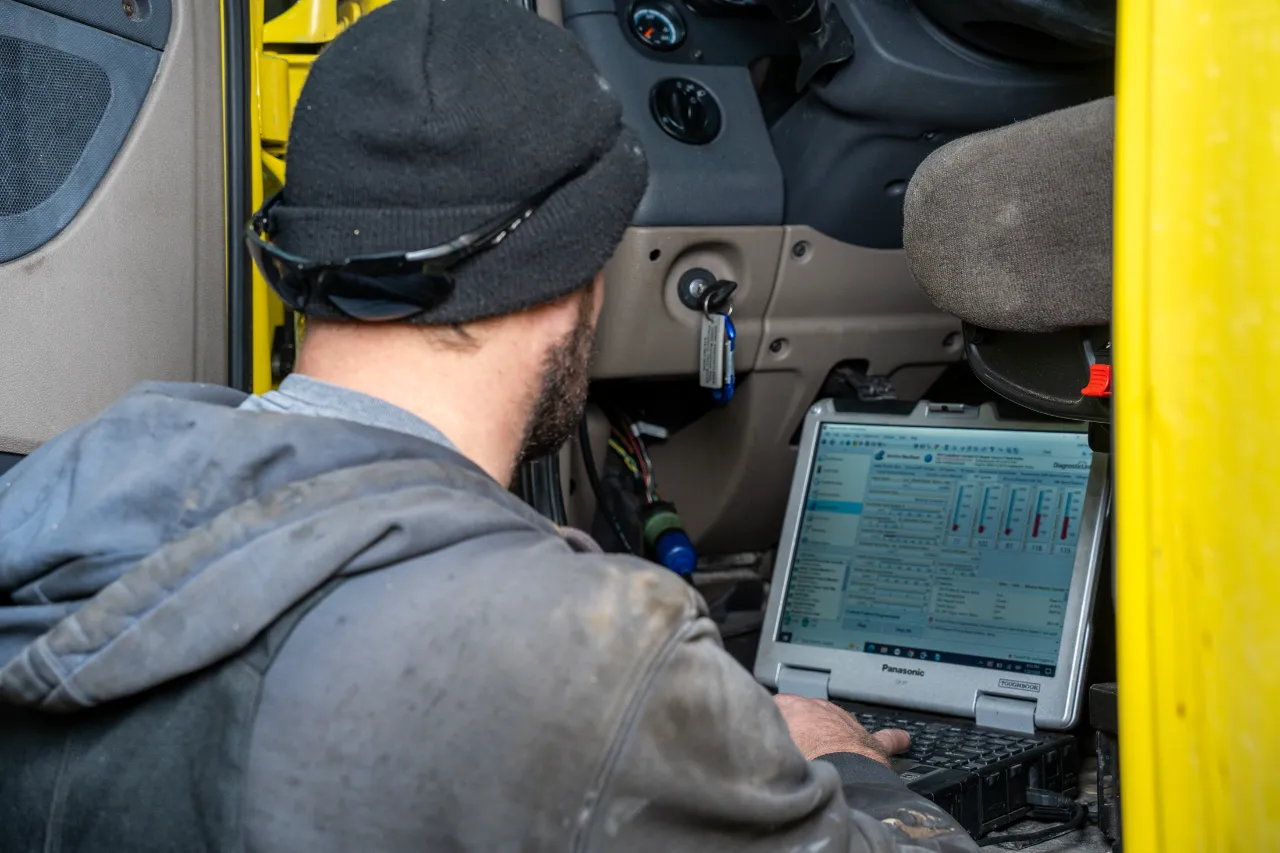

Step 1: Use a Code Reader or Diagnostic Scanner

Plug it into the OBD-II or J1939 port (depending on your truck model). Once connected, the scanner will interface with the ECM and retrieve all stored, pending, and historical codes.

Step 2: Check Your Display Panel

Some modern rigs allow you to access basic diagnostic information right from the dashboard. This is usually available via menu options or sequence buttons.

Step 3: Listen and Count

Older systems without advanced electronics might flash codes using dashboard lights. A sequence of blinks (e.g., 3 short and 2 long) can represent a numeric code like 32.

What Do These Codes Actually Mean?

This is where things get a little bit trickier. Codes are categorized in different ways, and not all of them require your immediate attention.

Active Codes: These are current issues your truck is experiencing and need to be addressed right away.

Pending Codes: The ECM has noticed something unusual, but it's not bad enough to throw an alert…yet.

Historic Codes: Past problems that have since been resolved but are stored in memory for reference. These might seem pointless, but they’re a good way of building out preventive and predictive maintenance programs.

Understanding these distinctions helps prioritize repairs.

An active DEF system fault? Unless you want to breach emissions regulations and be fined over $45,000, this needs to be resolved ASAP.

A historic low voltage alert? Keep an eye on it, but it might have just been a dead battery.

Common Heavy-Duty Trouble Codes and What They Mean

Here’s a handful of frequently encountered DTCs in the heavy-duty world:

• P2002 – Diesel Particulate Filter (DPF) efficiency below threshold


• P2459 – DPF regeneration frequency abnormal


• P0401 – EGR flow insufficient detected


• U0100 – Lost communication with ECM/PCM


• P0562 – System voltage low

These codes often point to issues within the aftertreatment system, electrical components, or engine emissions controls. Essential areas for keeping your truck running clean and compliant.

Why the Right Scanner Matters

Not all scanners are built the same. A generic scanner might read basic OBD-II codes, but J1939-compliant readers are essential for heavy-duty trucks. Some advanced tools even allow for:

• Live data streaming


• Forced DPF regen


• Clearing inactive codes


• ECM parameter adjustments

Investing in the right diagnostic equipment pays dividends in uptime and maintenance planning.

What to Do After Reading the Code

Ok, so you’ve pulled the code. What do you need to do next?

1. Document It: Always jot down the code, symptoms, and conditions when it appeared (e.g., heavy load, cold start).


2. Don’t Just Clear It: Clearing the code without addressing the root cause just kicks the can down the road. If it’s active, resolve it now.


3. Consult Technical Manuals or Software: Use manufacturer service info, online databases, or shop software to translate the code into actionable repair steps.


4. Perform Visual Inspections: A surprising number of DTCs stem from basic issues. Things like loose connectors, damaged wiring, or clogged filters are often common culprits.


5. Run Post-Repair Scans: Once repairs are done, scan the system again. If the code’s gone and no new ones appear, you’re golden.

When to Call the Pros

Sometimes, codes lead to rabbit holes. If you're getting multiple related faults, recurring issues, or problems tied to critical systems (think ABS, transmission control, or aftertreatment), it’s time to let a certified repair shop with diagnostics services have a dig around.

Wrap Up

Your truck’s diagnostic codes are essential to understanding what’s happening under the hood. Learn to read them, interpret them, and act on them, and you’ll save time, money, and a whole lot of headaches down the line. Whether you’re hauling cross-country or within your city, knowing your codes keeps you one step ahead of the breakdown.

Next time your dash lights up, don’t panic. Plug in, pull the code, and take control.
